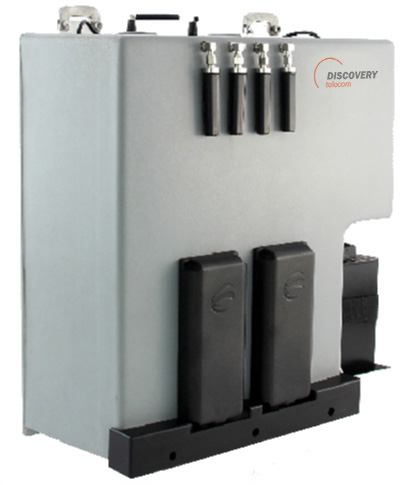

DT-QBS. Multi-frequency universal 4BTS IMSI/IMEI/TMSI catcher for backpack
The best price guarantee

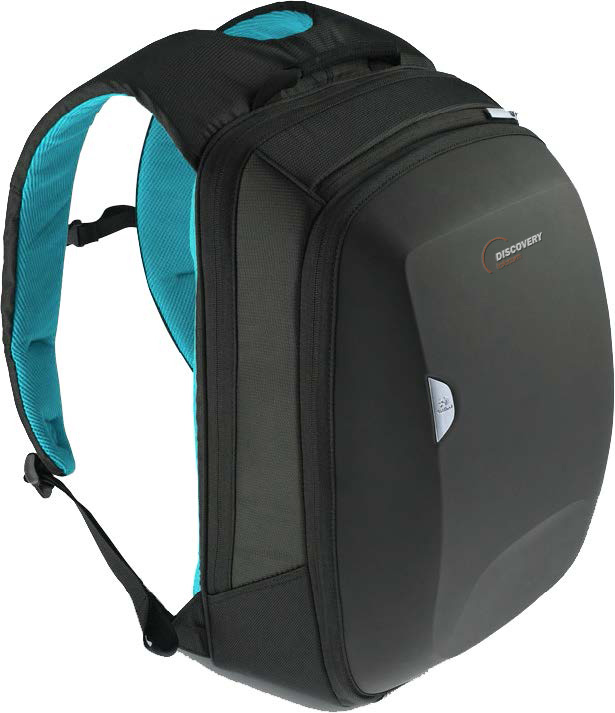

QBS IMSI Catcher in Backpack
|
Main characteristics
|
|||||||||||||||||||||||||||||||||||||||||||||||||
The DT-QBS is quad-sector, software-defined radio base station system built for the special needs of applications like Search and Rescue (S&R), Portable Network in a Box (NiB), Cellular Identification, Managed Access, and so on.
The platform integrates four digital signal processors (DSPs) and four radio frequency (RF) transceivers. The RF transceivers support any frequency band between 400MHz and 6GHz. The platform has control interfaces to support four external RF front ends (power amplifiers, etc.)
The platform integrates four digital signal processors (DSPs) and four radio frequency (RF) transceivers. The RF transceivers support any frequency band between 400MHz and 6GHz. The platform has control interfaces to support four external RF front ends (power amplifiers, etc.)
 | The DT-QBS has a metal casing and can be ordered with or without a fan to accommodate different ambient temperature ranges. It also includes an onboard Environment Management IC (EMIC), which monitors and responds to changes in board temperature and input voltage, and handles other low level hardware management.
An optional “Keep Alive” battery can keep the device fully operational for approximately 5 to 10 minutes to allow “hot swap” of the external power supply.
The embedded Wi-Fi / Bluetooth module enables wireless connectivity to the platform, for example, for controlling from smartphones. It also includes a high sensitivity, 72-channel tracking GPS module for precise location tracking and clock synchronization. Internal Wi-Fi / Bluetooth and GPS antennas are also included. Wi-Fi monitoring requires a separately-orderable Wi-Fi module. The DT-QBS includes an SD card interface that can be used for scenario configuration, operation logging, and so on). UART, Ethernet, and user I2C interfaces are available via a digital expansion port. |
The DT-QBS can be ordered with an optional 3G/LTE UE module or an additional Wi-Fi module. The 3G/LTE UE module can serve as a backhaul interface for NiB applications, for controlling the device remotely. An additional Wi-Fi module includes support for Wi-Fi monitoring.
Each radio can be configured independently to operate as a GSM, UMTS, CDMA2000, or LTE base station.
Additionally, software support exists for cellular scanning (on all 3GPP standards), clock synchronization based on neighboring base stations, and many other features.
The host processor in the DT-QBS is the Freescale i.MX6. The DT-QBS ships with the Linux operating system, including all necessary Board Support Packages (BSPs) for various digital interfaces.
The platform also comes with On Board Management (OBM) software to provide management functions for DSP software booting, interfacing with EMIC, support for external RF front ends, and other hardware access support.
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI catcher DT-QBS with 4 base stations. Data sheet | 10-20-2020 | Documentation (pdf) | 0.71 MB |  download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
Check out the brand new super lightweight version of DT QBS IMSI catcher
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI catcher DT-QBS with 4 base stations. Data sheet | 10-20-2020 | Documentation (pdf) | 0.71 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
|
Base kit
Catcher, Amplifier (optional), Smartphone Android,
carrying case, antennas, connecting wires,
power supply unit
Optional
Laptop, Amplifier

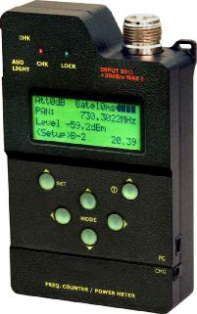

Pocket Direct Finder (DF)
Power amplifier for 10 watts and more
Lithium Extended Battery
Various carrying bags
|  |
 |
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI catcher DT-QBS with 4 base stations. Data sheet | 10-20-2020 | Documentation (pdf) | 0.71 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
Video of IMSI / IMEI catcher in Registration mode
Video of IMSI / IMEI catcher in Scanning mode
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI catcher DT-QBS with 4 base stations. Data sheet | 10-20-2020 | Documentation (pdf) | 0.71 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
Application of four-base universal IMSI / IMEI catcher DT QBS:
IMSI/IMEI catching – in this mode the system detects identities of all mobile phones within it’s effective range.
Selective jamming of communication – in this mode system operator can block communication of all mobile phones defined as targets.
Presence verification ‐ This operational mode is intended to detect and select targets of interest (according to IMSI/IMEI identifications) from the total number of subscribers located within operational area of the system.
Data Analysis / Target Correlation ‐ This mode allows the system to detect identities of mobile phones (IMSI/IMEI) which belong to particular targets.
Direction Finding Support – the system forces target’s phone to get into transmit mode (without any visible mark) so that DF / Homing systems can track the transmission direction to identify the target mobile.
Downgrade from 3G/4G/5G to GSM for operation by an active or passive interception complex
Based on the above capabilities, the system can support variety of operational needs such as:
‐ Detection of identities of all mobile phones in the areas of interest;
‐ Identifying of mobile phones which belong to particular targets;
‐ Selective jamming of phones in restricted areas (prisons, embassies, etc);
‐ Presence detection of targets in specific area of interest (border crossing, airports, public areas);
‐ Detect location of hidden mobiles (prisons, classified places);
System can operate with variety of power sources such as AC supply, batteries, car supply etc and by that, it can be installed and operated in many types of applications and environments (fixed installation, remote control configuration, transportable, vehicular, man pack).
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI catcher DT-QBS with 4 base stations. Data sheet | 10-20-2020 | Documentation (pdf) | 0.71 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
New ultra-light IMSI catcher is available for a demo right now.
Demo and training of interception systems are carried out in our premises or in the client's country, subject to an official invitation from government agencies
To get a demo or training you should provide complete end user certificate
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI catcher DT-QBS with 4 base stations. Data sheet | 10-20-2020 | Documentation (pdf) | 0.71 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| IMSI catcher DT-QBS with 4 base stations. Data sheet | 10-20-2020 | Documentation (pdf) | 0.71 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
 |
 Additional Product Information |
 |
 Wide frequency band from 400MHz up to 6GHz |
| Support of all standards: GSM, UMTS (3G), LTE (4G), CDMA (Optional) |
| User Friendly control via Android |
| Built-in powerful batteries |
| Remote control |
| Combining in a single network with a central control |
