Narrowband Passive GSM interceptor
Passive Interception System
|
Main characteristics
|
|||||||||||||||||||||||||||||||||||||||||||||
Attention
Attention
We sell systems at the lowest prices on the market.
We are also ready to provide a free demo in our office or a demo on a paid basis on the side of a government customer.
If you are charged in advance for a demo or refuse to provide it, and also offer prices lower than ours, most likely you are dealing with scammers.
Narrowband Passive GSM interceptor SPI-I
The system was designed for the air interception for cellular communication in GSM networks
The passive GSM interception system, designed for mass interception of GSM targets only without using active components (BTS).
The receiver unit is designed on Motorola modules.
The system includes external hardware decipherer A5.1 and internal software decipherer A5.2 The system can intercept A5.1 and A5.2 encrypted communication.
The system includes 3 main units:
1. Receiving Units (each unit is only 8 duplex channels)
2. Laptop with interception software and A5/2 real time software decipherer.
3. A5.1 Real Time Hardware Decipherer *
Additional units are available:
1. Amplifier of fake class marks (to reduce A5.3 encryption)
2. Digital Antenna Switcher
3. Module of clones (for getting PN)
4. Portable Pocket Channel Scanner
3. Module of clones (for getting PN)
The system is housed in a ruggedized small unit (25X25X12Cm) connected to the A5/1 real time decipherer either by a USB cable or wirelessly. The basic configuration supports interception of 8 full duplex sessions (intercepted by 16 receivers) from different base stations and different providers (configured by the operator). System is a quad‐band and can be tuned to any GSM frequency used in the specific area.
All intercepted sessions and related data are stored in the system data base for offline analysis and playback.
System can operate with variety of power sources such as AC supply, generator, batteries, car supply etc and by that, it can be installed and operated in many types of configurations and environments (fixed installation, remote control configuration, transportable, vehicular, manpack etc). The architecture is modular and system capacity can be increased for interception of 16, 24, 32 full duplex sessions, all supported by a single real time decipherer.
Main specifications:
Frequency coverage: 850/900/1800/1900MHz
Number of channels: 8/16/24/32 full duplex
Real Time Decryption: A5.0/A5.2 with internal decipherer and A5.1 with external decipherer
Modes of operation: Random/Target/ByFilters
Interception: Up to 8 different BTS (standard configuration)
System output: Voice, SMS in all languages and call related data
* Hardware Decipher A5.1 is not included in the price
Also we recommend new third-generation interceptor SPI-3
Number of channels: 8/16/24/32 full duplex
Real Time Decryption: A5.0/A5.2 with internal decipherer and A5.1 with external decipherer
Modes of operation: Random/Target/ByFilters
Interception: Up to 8 different BTS (standard configuration)
System output: Voice, SMS in all languages and call related data
* Hardware Decipher A5.1 is not included in the price
Also we recommend new third-generation interceptor SPI-3
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| System of Passive Interception GSM. Description | 09-15-2019 | Documentation (pdf) | 0.35 MB |  download |
| Passive GSM interceptor. Leaflet | 09-15-2019 | Documentation (pdf) | 0.34 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
At the beginning of interception, all existing receivers dedicated to forward channels must to be tuned to the nearest-to-target-phone base stations. Depending on its environment, a mobile phone can communicate with a GSM network via one of several preferred base stations located nearby.
In a rural environment or in a small town, there may be 1–2 preferred base stations. In such a case, a GSM Interceptor with 2 forward receiver channels may be enough. But in a big city, where base stations are close to one another, a mobile phone makes its choice among 2–3 or sometimes even more base stations. Then an Interceptor with at least 3 forward receiver channels will be necessary.

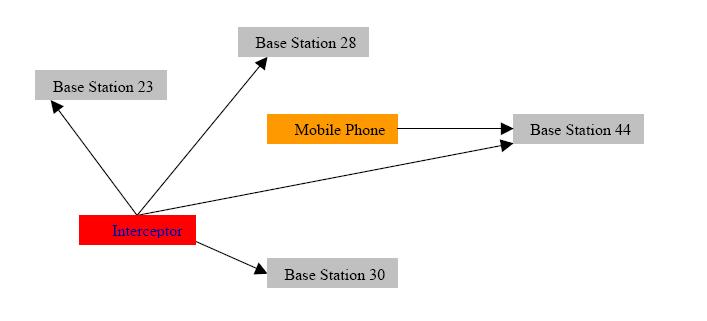

In the picture above the mobile phone may choose among 4 base stations, so the Interceptor needs at least 4 forward receiver channels. If an Interceptor with 2 forward receiver channels is used in this situation, the chances of missing the call will be around 50%.
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| System of Passive Interception GSM. Description | 09-15-2019 | Documentation (pdf) | 0.35 MB | download |
| Passive GSM interceptor. Leaflet | 09-15-2019 | Documentation (pdf) | 0.34 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
Demo or training of interception systems are carried out in our premises or in the client's country, subject to an official invitation from government agencies.
We provide online demos only to existing clients with whom we have successful experience of cooperation. We do not provide free training. If you are not familiar with the subject, links to training courses are here.| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| System of Passive Interception GSM. Description | 09-15-2019 | Documentation (pdf) | 0.35 MB | download |
| Passive GSM interceptor. Leaflet | 09-15-2019 | Documentation (pdf) | 0.34 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| System of Passive Interception GSM. Description | 09-15-2019 | Documentation (pdf) | 0.35 MB | download |
| Passive GSM interceptor. Leaflet | 09-15-2019 | Documentation (pdf) | 0.34 MB | download |
| End User Certificate (EUC) to apply for purchase | 03-03-2021 | Documentation (pdf) | 0.09 MB | download |
To access this product file, get partner STE status
 |
 Additional Product Information |
 |
 Amplifier of fake class marks (to reduce A5.3 encryption) |
| Module of clones (for getting PN) |
| Digital Antenna Switcher |
| Portable Pocket Channel Scanner |
