Explorer 710 is BGAN 2.0 new terminal
The best price guarantee
Other photos
|
Main characteristics
|
|||||||||||||||||||||||||||||||||||||||
The Explorer 710 is BGAN 2.0 a game-changing terminal using new HDR services available from Inmarsat ideal for satellite broadcasters and power users. Shared speeds of 492 Kbps, and streaming speeds of 650kbps with full channel options for higher quality live video newsgathering.
Explorer 710 Top Features
► Streaming speeds of 650 Kbps. The Fastest BGAN streaming speed available.
► Standard (shared) Internet speeds of 492 Kbps
► Portable. Will fit inside a large laptop case
► Wi-Fi hotspot (up to 328' ft or 100 meters)
► Same features as the popular Explorer 700 BGAN Terminal
The Explorer 710 will be the smallest class 1 BGAN terminal, and the first to use the new BGAN HDR (Higher Data Rates) service platform from Inmarsat that is scheduled for commercial launch in Q3 2013. The Explorer 710 will also introduce advanced features including the ability to bond the signals from two 710 terminals using only an Ethernet cable. BGAN Bonding can achieve IP streaming rates of 1 Mbps or even higher using no boxes, no complex routing, just an Ethernet cable and a Linux program running back home.
“Since 2005, the BGAN platform has transformed newsgathering, enabling live broadcasts from the farthest, most inhospitable reaches of the planet,” said Martin Turner, Inmarsat’s Media Business Director. “We improved the streaming speeds with BGAN X-Stream in 2009 and now, in 2013, we’re introducing the next revolution in satellite newsgathering with BGAN HDR.”
Cobham’s small and light EXPLORER 710 is a plug-and-play device. It features built-in bonding capability enabling connection speeds of more than 1Mbps (for a shared Internet connection). This was previously only possible on a larger VSAT satellite dish uplinks.
“The EXPLORER 710 is the most advanced and smallest Class 1 BGAN terminal to date,” said Walther Thygesen, Head of Cobham SATCOM. “It also introduces a number of enhancements, including bonding and smartphone connectivity. Combined with BGAN HDR, it becomes a compact, reliable and extremely portable solution for the high-speed transmission of live video, audio and data from practically anywhere in the world.”
The Explorer 710 will also introduce Smart Phone apps to the world of BGAN connectivity, enabling users to connect their own portable devices for voice calling and connectivity. Other features include a large LED display, which facilitates set-up and configuration without being connected to a PC, Smart Phone or tablet.

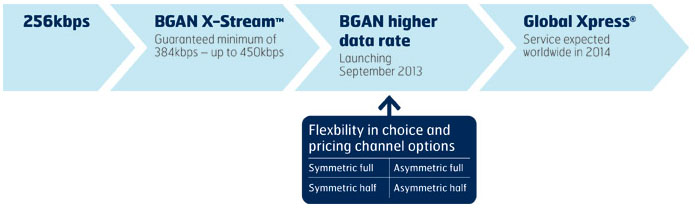

NEW BGAN HDR SERVICE
BGAN HDR Service is slated to be released in Q3 of 2013. It features expected full channel streaming rate of around 650kbps – combined with optimized codecs, you’ll see a real step-change in video quality All new rates will utilize the current Inmarsat-4 network. Half-channel rate means you only pay for what you need
Asymmetric
Much of the time, you don’t need extreme speeds coming back to the terminal if all you want to hear are the questions from the studio. HDR will be asymmetric and you won’t pay for what you don’t need.
Half-Channel
Since many don't require the whole channel, there will be an option to use half the bandwidth.
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| Leaflet BGAN 710 | 11-04-2013 | Documentation (pdf) | 0.72 MB |  download |
| BGAN terminals catalog | 08-14-2010 | Documentation (pdf) | 0.18 MB | download |
| BGAN Inmarsat AirTime | 02-15-2014 | Documentation (pdf) | 0.07 MB | download |
To access this product file, get partner STE status
| Explorer 710 Package Contents | ► Explorer 710 BGAN Terminal (comes in 2 parts, transceiver and antenna)
► Rechargeable Li-Ion Battery ► AC/DC Recharger with Universal (International) Power Adapters. ► Ethernet/ISDN (RJ45) 2 meter cables ► 2 Split Cables (connect transceiver to antenna) 0.4 meter and 10 meter lengths ► USB Cable 1.8 Meter ► Manuals and Launchpad Software | |
| Terminal Capability | Internet, Email, Phone, VoIP, FTP, FoIP (Fax), SMS Text, Video Streaming | |
| Internet Connection Speed | Class 1 BGAN - 492 Kbps down x 492 Kbps up with standard IP connection | |
| Service | Standard BGAN Service, BGAN HDR Service (To Be Released),
BGAN Link High Usage Plans | |
| BGAN Rx/Tx Frequencies | L-band, Rx @ 1525.0-1559.0 MHz, Tx @ 1626.5-1660.5 | |
| Wireless LAN | 802.11 b/g up to 54 Mbps 100 meter (328 ft) radius. Frequencies - 2400.0-2485.0 MHz | |
| Antenna/Transceiver Split Cable | Includes one 0.4 meter cable(short), and 10 meter cable(long). Call for longer cable lengths. | |
| Interfaces | Ethernet (RJ45) 2 ports, Phone (RJ11), FAX (RJ11), ISDN (RJ45 64Kbps) 2 ports, USB | |
| Voice Phone/Fax | RJ-11, 4 kbps AMBE+2, Premium voice: 3.1 kHz audio, 64 kbps | |
| LAN | RJ-45, Power Over Ethernet PoE Cl. 2 on one RJ-45 interface, Data Rate 10/100 Mbps. Max Cable Length, 100m (Cat5 UTP) | |
| ISDN | ISDN: UDI 64 kbps / RDI 56 kbps via RJ45. Max units per port = 8. Total power supplied 1 watt. | |
| USB | Version 2.0, A plug, Up to 2 amp charging. | |
| SMS Messaging | Supported | |
| Other Ports | Power & Charge Port (10-32 VDC) | |
| Phone Features | Call forwarding, call barring, call waiting, call holding, call transfer | |
| Streaming Services 1:1CIR | 32Kbps, 64Kbps, 128Kbps, 176Kbps , 256Kbps, and 450 Kbps BGAN X-Stream | |
| HDR Streaming Service | 650 Kbps (Estimated). 325 kbps (Half-channel HDR)
BGAN Bonding capable for over 1Mbps streaming speeds. | |
| Bluetooth | TBD | |
| Dimensions | H x W x D - 13.07" x 10.98" x 2.13" inches (332 x 279 x 54 mm) | |
| Weight | 7 lbs (3.2 kgs) Antenna 1.7kg, Transceiver 1.5kg | |
| Power Requirements | 10 to 32 volts DC (15 volts standard), 100 to 240 VAC 47-63Hz. Max consumption at 65 watts | |
| Power Usage- Battery Life | Stand-by time: 36 hours ( 25°C / 77°F)
Transmit time: max.: 2h30m @ 144 kbps or 1h30m @ 492 kbps, (25°C / 77°F) Receive time: max.: 3h30m @ 492 kbps | |
| Battery Swapping | Hot-Swap and Intelligent power management | |
| Humidity | 95% RH at +40°C (+104F) | |
| Operating Temperatures | (ambient): -25°C to +55°C / -13°F to +131°F | |
| Storage Temperatures | (excl. battery): -40°C to +80°C / -40°F to +176°F | |
| Battery Storage Times | 1 year @ 68° F (or less), 3 months at 113° F , 1 month @ 140° | |
| Battery recharge time | 2.5 hours between 0° to 113° F (to be confirmed). | |
| Antenna Rain/Water/Dust | IP 66 Compliant | |
| Transceiver Rain / Water / Dust: | IP52 Compliant | |
| SIP | Integrated SIP Server | |
| EIRP | 20dBW ±1dB | |
| Inmarsat Frequencies | 1518.0 - 1525.0 MHz (Rx) (EMEA) | 1525.0 - 1559.0 MHz (Rx) | 1626.5 - 1660.5 MHz (Tx) | 1668.0 - 1675.0 MHz (Tx) (EMEA) | |
| Supported Languages | UK, FR, DE, ES, RU, CN | |
| PDF Brochure & Specs | Explorer 710 Brochure & Specs |
