Grandstream GXV3500

Print
GXV3500 video gateway
Main characteristics
SKU 1356
Vendor Grandstream
Category Video servers
Standart VoIP/SIP
Frequency Output: 12VDC/0.5A; Input: 100-240VAC, 50-60Hz
Connectors RJ-45 10/100 Base-T Eternet port
Protocols TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP
Interface BNC, RS485, PTZ
Dimensions, HWD 67 x 34 x 96 mm
Weight 0.121 kg
Shipment Worldwide
Price 189 $
Other currency 181 €
Delivery 7 days
Wire Transfer VISA MasterCard

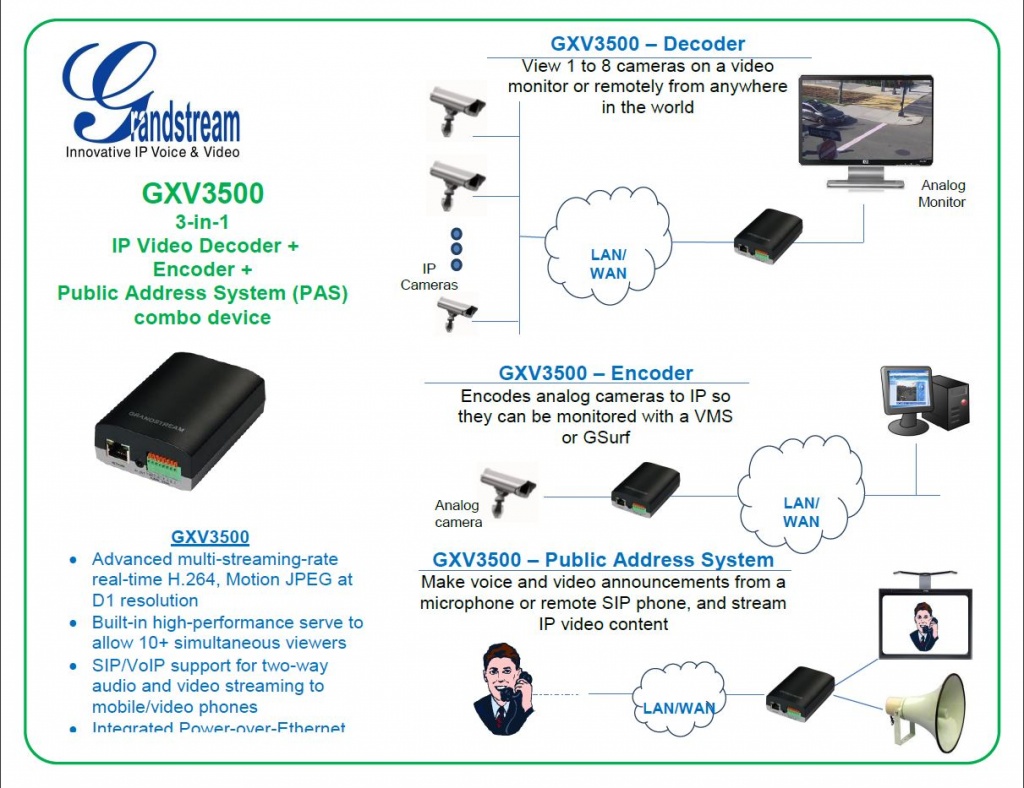

The GXV3500 is a powerful next generation IP video encoder & decoder combo device. It features cutting edge H.264 real-time video compression for analog video as well as IP video decoding with excellent image clarity. It offers industry leading SIP/VoIP for 2-way audio, video streaming to mobile phones and video phones, integrated PoE, embedded analytics, a large pre-/post-event recording buffer, and advanced security protection.

Its unique incorporation of comprehensive peripheral support for alarm control and TV display creates sophisticated and best-in-class control flexibility and scalability. The GXV3500 can be managed with GSurf, Grandstream’s advanced and intuitive video management software that controls up to 36 cameras simultaneously. It offers an HTTP API and has open-standard ONVIF conformance for easier operation and higher levels of integration. The GXV3500 is an IP video encoder & decoder for professional surveillance environments.

  • Decodes standard definition PAL/NTSC composite video stream, or smaller resolutions
  • Advanced multi-streaming-rate real-time H.264, Motion JPEG at D1 resolution
  • Support 8Mb pre-/post-event recording buffer
  • Support Line-Out and Micro-In audio connections
  • Support composite (RCA) video output to TV
  • Support Motion Detection, and Notification on PC Client
  • Support both Variable Bit Rate and Variable Frame Rate
  • Support IE and Firefox for network preview
  • Built-in high performance streaming server to allow 10+ simultaneous viewers
  • SIP/VoIP support for two-way audio and video streaming to mobile phones/video phones
  • Integrated Power-over-Ethernet (802.3af)
  • Support voice announcement from microphone or remote SIP phones, or video announcement/advertisement from remote SIP video phones or IP video streaming content
  • Full ONVIF compliance
Grandstream GXV3500 IP Video Encoder/Decoder Technical Specifications

Video Compression H.264, JPEG, Motion JPEG

Max Video Resolution:

Encoding NTSC:
  • 704x480 @ 30fps (4CIF)
  • 640x480 @ 30fps (VGA)
  • 352x240 @ 30fps (CIF)
  • 320x240 @ 30fps (QVGA)
  • 176x112 @ 30fps (QCIF)
Encoding PAL:
  • 704x576 @ 25fps (4CIF)
  • 640x480 @ 25fps (VGA)
  • 352x288 @ 25fps (CIF)
  • 320x240 @ 25fps (QVGA)
  • 176x144 @ 25fps (QCIF)
Decoding NTSC:
  • 720x480 @ 30fps (4CIF)
  • 640x480 @ 30fps (VGA)
  • 352x240 @ 30fps (CIF)
  • 320x240 @ 30fps (QVGA)
  • 176x112 @ 30fps (QCIF)
Decoding PAL:
  • 720x576 @ 25fps (4CIF)
  • 640x480 @ 25fps (VGA)
  • 352x288 @ 25fps (CIF)
  • 320x240 @ 25fps (QVGA)
  • 176x144 @ 25fps (QCIF)
Max Frame Rate in Max Resolution    30fps/25fps for D1 (NTSC/PAL)
Video Bit Rate                                16 Kbps - 2Mbps
Video Input                                     BNC (voltage 1.0Vp-p, resistance 75)
Audio Input                                    3.5mm MIC IN
Audio/Video Input                       3.5mm, 3-leg A/V cable for TV audio & video output
Alarm Input                                     Digital input port. Normal open (low), Current (DC) <50mA.                                                               Voltage <45V to activate
Alarm Output                               Digital output port. Normal open, Voltage <80V, Current <50mA
Audio Compression                       G.711a/u
Serial Ports                                     RS485 (PTZ Control)
Embedded Analytics                       Motion detection (up to 16 target areas), video loss (pending)
Pre-/Post-alarm buffer                24MB
Snapshots                                    Triggered upon events, send via e-mail/FTP
Multi-streaming-rate for
Preview and Recording               Yes
Security                                       Video watermark (pending), HTTPS, admin/anonymous
Network Port                               10M/100M auto sensing, RJ45
Network Protocol                       TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP,                                                       FTP, NTP
Power Over Ethernet (PoE)          IEEE 802.3af class 0
SIP/VoIP Support                        Yes, Voice and Video-over-IP
Dimensions                                        67mm (W) x 34mm (H) x 96mm (L)
Weight                                       121g
Temperature/Humidity                 0°C - 45°C (32°F-113°F); Humidity 10-90% RH (non-condensing)
Power Adapater                             Output: 12VDC/0.5A; Input: 100-240VAC, 50-60Hz
Compliance                                    FCC, CE C-Tick
