Konftel 50 conference phone
Other photos
|
Main characteristics
|
|||||||||||||||||||||||||||||||||||
Konftel 50 – The personal Conferencing Solution
The Konftel 50 is the ideal office conference phone. Uniquely designed, the Konftel 50 connects to digital and IP phone sets, cellular and cordless telephones and computers. It can also be used with VoIP and other PC audio applications. Now you can hold a meeting anytime – regardless of distance and pressing schedules. Konftel conference units are all equipped with the unique OmniSound® feature – optimal sound for natural, crystal clear communication. Konftel telephone conferencing brings people together and is the ideal alternative to travel.
The Konftel 50 is ideal for an office or a smaller meeting room. Give your calls a loudspeaker sound. Your hands are freed and more people can take part in the telephone conversation.
No extra telephone line is required as the Konftel 50 connects to an existing telephone or computer.
IP telephony via your computer IP telephony with full duplex!
Connect the Konftel 50 to the audio input on your computer with the supplied cables. Loudspeaker and microphone volumes are controlled fr om your computer.
Calls via the system telephone
The most common method for using the Konftel 50. Connects to the receiver connector of your system telephone. Choose whether you want to take calls via the receiver or the Konftel 50 with the push of a button. Instead of the receiver, you can connect a headset if you prefer.
Calls via your mobile phone
Have you tried to host telephone meetings via a mobile telephone? It's okay if you are alone, but is more problematic if two or more people are to both talk and listen using the same telephone. Connect your wireless DECT telephone or mobile phone to the Konftel 50 with an accessory cable. Call as usual and use the telephone's functions.

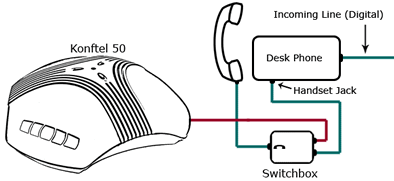

The Konftel 50 sits in between your phone handset and the phone base in the same way you might connect a headset and amplifier base. The incoming phone line still goes into your phone.
First, unplug the handset from the phone's base. Plug it into the port on the switchbox with the handset icon on top.
The other side of the switchbox has two ports. Take the short wire (Which is in the right-hand port if the handset connector is facing you) and plug it into your phone's base (The same jack you just unplugged the handset from).
Finally, plug the 10 foot included phone cable into the remaining jack (This is the red cord in the diagram). The other end of this cord goes into the only jack on the Konftel 50 unit, which is on the bottom. Next to that jack is a small circular hole, which is wh ere the power cord plugs in. Once that is hooked up, the machine is ready to go.
CONTENTS
US Version Item no. 840101040. Konftel 50, switchbox, PC cable, power and tele cables, AC adapter and Quick Guide.
European Version Item no. 910101040. Konftel 50, switchbox, PC cable, power and tele cables, AC adapter and Quick Guide
US Version Item no. 840101040. Konftel 50, switchbox, PC cable, power and tele cables, AC adapter and Quick Guide.
European Version Item no. 910101040. Konftel 50, switchbox, PC cable, power and tele cables, AC adapter and Quick Guide
LANGUAGE
User Guides; Danish, English, Finnish, French, Italian, Dutch, Norwegian, Spanish, Swedish, German.
POWER SUPPLY
AC adapter 120 V AC/12 V DC, 700 mA. Electrical cable 20 ft (6 metres),
modular 4/4 (RJ-11).
User Guides; Danish, English, Finnish, French, Italian, Dutch, Norwegian, Spanish, Swedish, German.
POWER SUPPLY
AC adapter 120 V AC/12 V DC, 700 mA. Electrical cable 20 ft (6 metres),
modular 4/4 (RJ-11).
APPROVAL
FCC, UL and CSA.
LOUDSPEAKER VOLUME
Adjusts to 15 levels.
MICROPHONE VOLUME
Adjusts to 5 levels.
RECEPTION AREA
Microphone < 300 sq ft (30 m2).
REC. ROOM CONDITIONS
Reverberation time: < 0.5 sec. Background noise: < 45 dBA.
TEMPERATURE
41°–104° Fahrenheit.
SIZE
9.15 inches (232 mm) diameter.
WEIGHT
1.6 lbs.
COLOUR
Seashell white.
WARRANTY
Two-year warranty
Copyright © 2010 Konftel. All rights reserved.
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| Product Data Sheet KONFTEL 50_ENG | 07-20-2012 | Documentation (pdf) | 0.62 MB |  download |
| Product Data Sheet KONFTEL50_USENG | 07-20-2012 | Documentation (pdf) | 0.18 MB | download |
| USB Adapter Quick Guide Konftel 50_ENG | 07-20-2012 | Documentation (pdf) | 0.46 MB | download |
| User Guide Konftel 50_USENG | 07-20-2012 | Documentation (pdf) | 0.48 MB | download |
| User Guide Konftel_ENG | 07-20-2012 | Documentation (pdf) | 0.46 MB | download |
